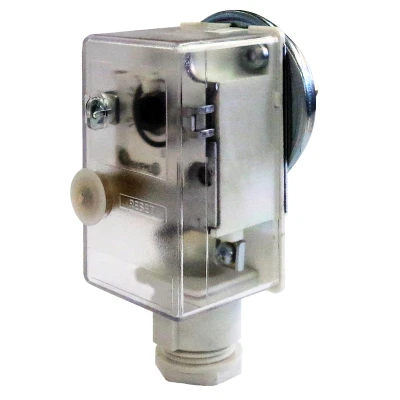

Low pressure switch
Series 2240
Low pressure switch with manual reset, used to command and control pressure in heating systems.
| Setting range 0.5 - 2.5 bar |
| Minimum differential for reset 0.5 bar |
| Factory setting 0.5 bar |
| Maximum sensitive element pressure 6 bar |
| Maximum controlled fluid temperature 120°C |
| Allowed pressure switch body temperature: -35 - +80°C |
| Electrical protection rating IP44 |
| G 1/2"F connection with dome |
Download
Low pressure switch with manual reset
| Code | Measure | Calibration (bar) | Pack | Outer | Cat. | € |
| 22400200 | 1/2" | 0,5 ÷ 2,5 | 1 | 1 | 60.01 | ||22400200_LastPrice|| |
Spare part for 3603 Series RBM instrument holder manifold
