Series 2416

Single-user MZ2 High Flow zone module

Series 2416

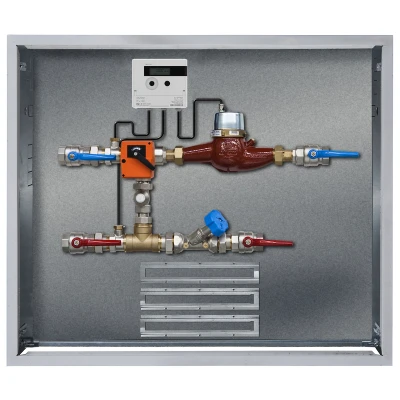

Single-user MZ2 High Flow zone module.
The module is made up of the following pre-assembled components:
Shut-off ball valve;
Thermal energy meter for high flow rates (HC35 1"1/4 - HC60 1"1/2) equipped with 2 impulsive inputs and M-Bus output;
Ball zone valve with ON/OFF electromechanical actuator;
Set-up for the subsequent installation of max. 3 RBM DHW and DCW lines;
Galvanised sheet indoor recessed box, complete with white painted cover, with lock.
Primary fluid max operating temperature 90 °C
Max operating pressure 10 Bar
Qp = 3,5 m³/h (1" 1/4) o 6 m³/h (1" 1/2)

Single-user MZ2 High Flow

Code Measure Version Pack Outer Cat.
2416.07.00 1"1/4 s. 2-way zone 1 1 03.01 ||24160700_LastPrice||
2416.08.00 1"1/2 s. 2-way zone 1 1 03.01 ||24160800_LastPrice||
2416.07.10 1"1/4 s. 4-way zone 1 1 03.01 ||24160710_LastPrice||
2416.08.10 1"1/2 s. 4-way zone 1 1 03.01 ||24160810_LastPrice||
