MZ6 Compact zone module
Series 2417

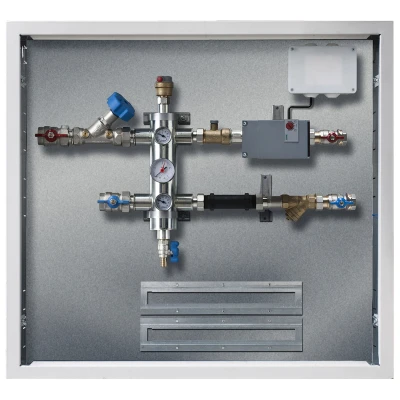

MZ6 Compact zone module.
| The module is made up of the following pre-assembled components: |
| Shut-off ball valve; |
| Hydraulic separator with air vent, drain, pressure gauge and thermometers; |
| Primary side heating circuit balancing valve; |
| High-energy efficiency, variable-flow electric circulation pump; |
| Connection electrical box; |
| Y filter with cartridge degree of filtration 800 μm; |
| Thermal energy meter set-up; |
| Set-up for the connections of RBM DHW and DCW lines; |
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Primary fluid max operating temperature 90 °C |
| Max operating pressure 6 Bar |
| Power supply voltage 230V 50Hz |
| Electrical power max 90 W |
Download
MZ6 Compact
| Code | Measure | Pump | Pack | Outer | Cat. | € |
| 24170600 | 1" | Para 15/7 SC 130 | 1 | 1 | 03.01 | ||24170600_LastPrice|| |
high-efficiency, variable-flow rate circulator EEI<0.23 - ERP 622/2012
MZ6 Compact inlet RH connections
| Code | Measure | Pump | Pack | Outer | Cat. | € |
| 24170650 | 1" | Para 15/7 SC 130 | 1 | 1 | 03.01 | ||24170650_LastPrice|| |
high-efficiency, variable-flow rate circulator EEI<0.23 - ERP 622/2012
RH version without thermometers and pressure gauges, supplied with closing plugs on the hydraulic separator.
