MZ4 Modular L.T. - 1" zone module
Series 2445
MZ4 Modular L.T. - 1" zone module

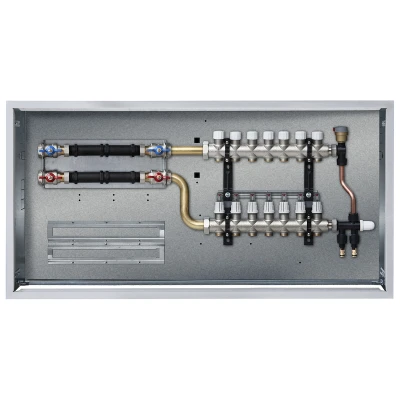

| The module is made up of the following pre-assembled components: |
| 4 shut-off ball valves; |
| Pair of plastic pipes serving as an installation template and to be used for flushing / filling the system before installing the Modular metering unit; |
| L.T. user supply 1" manifold (composition with flow meter on each delivery line and thermostatically controlled valves with manual hand wheel on the return line); |
| Set-up for the connections of RBM DHW and DCW lines; |
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Primary fluid max operating temperature 80 °C |
| Max operating pressure 6 Bar |
Download
MZ4 Modular B.T. - 1”
| Code | Measure | Ways | Width(mm) | Pack | Outer | Cat. | € |
| 24450600 | 1" | 2 | 950 | 1 | 1 | 03.01 | ||24450600_LastPrice|| |
| 24460600 | 1" | 3 | 950 | 1 | 1 | 03.01 | ||24460600_LastPrice|| |
| 24470600 | 1" | 4 | 1050 | 1 | 1 | 03.01 | ||24470600_LastPrice|| |
| 24480600 | 1" | 5 | 1050 | 1 | 1 | 03.01 | ||24480600_LastPrice|| |
| 24490600 | 1" | 6 | 1150 | 1 | 1 | 03.01 | ||24490600_LastPrice|| |
| 24500600 | 1" | 7 | 1150 | 1 | 1 | 03.01 | ||24500600_LastPrice|| |
| 24510600 | 1" | 8 | 1250 | 1 | 1 | 03.01 | ||24510600_LastPrice|| |
| 24520600 | 1" | 9 | 1250 | 1 | 1 | 03.01 | ||24520600_LastPrice|| |
| 24530600 | 1" | 10 | 1350 | 1 | 1 | 03.01 | ||24530600_LastPrice|| |
| 24540600 | 1" | 11 | 1350 | 1 | 1 | 03.01 | ||24540600_LastPrice|| |
| 24550600 | 1" | 12 | 1450 | 1 | 1 | 03.01 | ||24550600_LastPrice|| |
| 24560600 | 1" | 13 | 1450 | 1 | 1 | 03.01 | ||24560600_LastPrice|| |
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections.
