MZ4 Modular L.T. zone module Vertical
Series 2457
MZ4 Modular L.T. zone module Vertical.

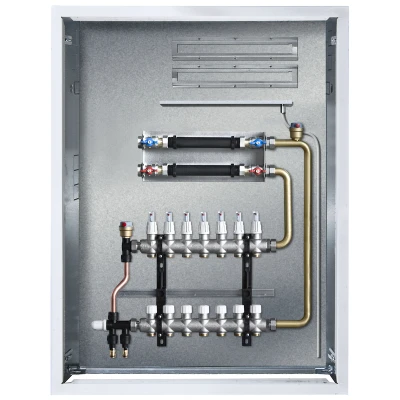

| The module is made up of the following pre-assembled components: |
| 4 shut-off ball valves; |
| Pair of plastic pipes serving as an installation template and to be used for flushing / filling the system before installing the Modular metering unit; |
| L.T. user supply 1" manifold (composition with flow meter on each delivery line and thermostatically controlled valves with manual hand wheel on the return line); |
| Set-up for the connections of RBM DHW and DCW lines; |
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Primary fluid max operating temperature 80 °C |
| Max operating pressure 6 Bar |
Download
MZ4 Modular B.T. Verticale - 1”
| Code | Measure | Ways | Width(mm) | Pack | Outer | Cat. | € |
| 24570600 | 1" | 2 | 650 | 1 | 1 | 03.01 | ||24570600_LastPrice|| |
| 24580600 | 1" | 3 | 650 | 1 | 1 | 03.01 | ||24580600_LastPrice|| |
| 24590600 | 1" | 4 | 650 | 1 | 1 | 03.01 | ||24590600_LastPrice|| |
| 24600600 | 1" | 5 | 650 | 1 | 1 | 03.01 | ||24600600_LastPrice|| |
| 24610600 | 1" | 6 | 650 | 1 | 1 | 03.01 | ||24610600_LastPrice|| |
| 24620600 | 1" | 7 | 750 | 1 | 1 | 03.01 | ||24620600_LastPrice|| |
| 24630600 | 1" | 8 | 750 | 1 | 1 | 03.01 | ||24630600_LastPrice|| |
| 24640600 | 1" | 9 | 850 | 1 | 1 | 03.01 | ||24640600_LastPrice|| |
| 24650600 | 1" | 10 | 850 | 1 | 1 | 03.01 | ||24650600_LastPrice|| |
| 24660600 | 1" | 11 | 1000 | 1 | 1 | 03.01 | ||24660600_LastPrice|| |
| 24670600 | 1" | 12 | 1000 | 1 | 1 | 03.01 | ||24670600_LastPrice|| |
| 24680600 | 1" | 13 | 1000 | 1 | 1 | 03.01 | ||24680600_LastPrice|| |
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections.
