MZ7 Modular Basic module
Series 2469.B

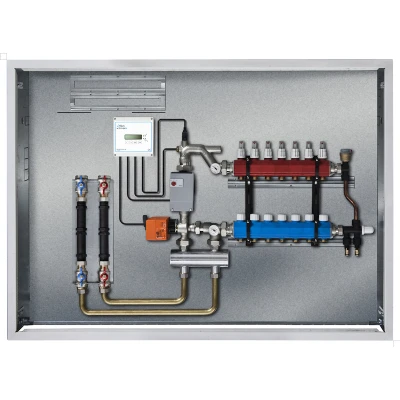

MZ7 Modular Basic module. Heating/cooling. Distribution manifold, only Low Temperature
| The module is made up of the following pre-assembled components: |
| Shut-off ball valve; |
| Pair of plastic pipes serving as an installation template and to be used for flushing / filling the system before installing the Modular metering unit; |
| Variable-flow electric circulation pump; |
| Three-way mixing valve, servo-actuated with 0-10 V motor; |
| Safety thermostat; |
| Anti-condensation manifolds for feeding L.T. heating terminals |
| Set-up for the connections of RBM DHW and DCW lines; |
| Digital electronic controller; |
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Primary fluid max operating temperature 90 °C |
| Max operating pressure 6 Bar |
Download
MZ7 Modular Basic
| Code | Measure | Ways | Width(mm) | Pack | Outer | Cat. | € |
| 24690650 | 1" | 2 | 1090 | 1 | 1 | 03.01 | ||24690650_LastPrice|| |
| 24700650 | 1" | 3 | 1090 | 1 | 1 | 03.01 | ||24700650_LastPrice|| |
| 24710650 | 1" | 4 | 1190 | 1 | 1 | 03.01 | ||24710650_LastPrice|| |
| 24720650 | 1" | 5 | 1190 | 1 | 1 | 03.01 | ||24720650_LastPrice|| |
| 24730650 | 1" | 6 | 1290 | 1 | 1 | 03.01 | ||24730650_LastPrice|| |
| 24740650 | 1" | 7 | 1290 | 1 | 1 | 03.01 | ||24740650_LastPrice|| |
| 24750650 | 1" | 8 | 1390 | 1 | 1 | 03.01 | ||24750650_LastPrice|| |
| 24760650 | 1" | 9 | 1390 | 1 | 1 | 03.01 | ||24760650_LastPrice|| |
| 24770650 | 1" | 10 | 1490 | 1 | 1 | 03.01 | ||24770650_LastPrice|| |
| 24780650 | 1" | 11 | 1490 | 1 | 1 | 03.01 | ||24780650_LastPrice|| |
| 24790650 | 1" | 12 | 1590 | 1 | 1 | 03.01 | ||24790650_LastPrice|| |
| 24800650 | 1" | 13 | 1590 | 1 | 1 | 03.01 | ||24800650_LastPrice|| |
high-efficiency, variable-flow rate circulator EEI<0.23 - ERP 622/2012
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G3/4" threaded connections.
External temperature probe available, code 3502.00.12
