MZ8 Modular Basic zone module
Series 2482.B

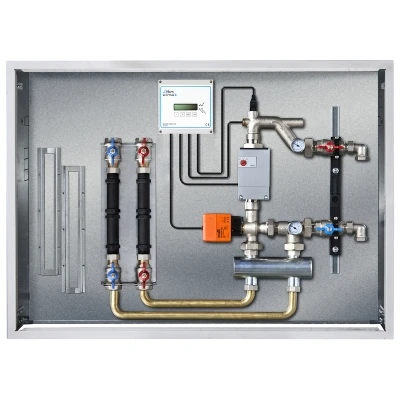

MZ8 Modular Basic zone module. Heating/cooling.
| The module is made up of the following pre-assembled components: |
| Shut-off ball valve; |
| Pair of plastic pipes serving as an installation template and to be used for flushing / filling the system before installing the Modular metering unit; |
| Variable-flow electrical circulation pump or; |
| Three-way mixing valve, servo-actuated with 0-10 V motor; |
| Hydraulic separator; |
| Safety thermostat; |
| Set-up for the connections of RBM DHW and DCW lines; |
| Digital electronic controller; |
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Primary fluid max operating temperature 90 °C |
| Max operating pressure 6 Bar |
Download
MZ8 Modular Basic
| Code | Measure | Pump | Pack | Outer | Cat. | € |
| 24820651 | 1" | 25/8 Para 130 | 1 | 1 | 03.01 | ||24820651_LastPrice|| |
high-efficiency, variable-flow rate circulator EEI<0.23 - ERP 622/2012
External temperature probe available, code 3502.00.12
