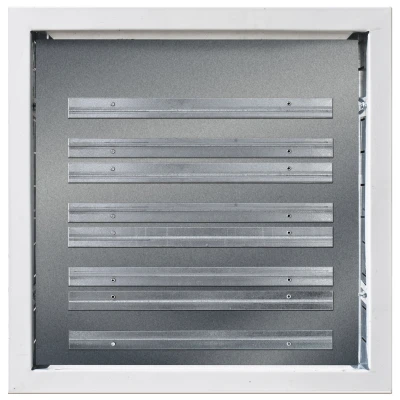

Housing box
Series 2514
Containment box for MZS zone module.
| Galvanised sheet indoor recessed box, complete with white painted cover, with lock. |
| Available in different sizes for the subsequent installation of max. 6 RBM DHW/DCW domestic water lines and 3 "Twin Pulse" electronic lines. |
Box for MZS straight outputs
| Code | LxHxP (mm) | Version | Pack | Outer | Cat. | € |
| 2514.02.02 | 430x270x110 | 2 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25140202_LastPrice|| |
| 2514.04.02 | 430x430x110 | 4 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25140402_LastPrice|| |
| 2514.06.02 | 430x600x110 | 6 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25140602_LastPrice|| |
Box for MZS curved outputs
| Code | LxHxP (mm) | Version | Pack | Outer | Cat. | € |
| 2515.02.02 | 480x310x110 | 2 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25150202_LastPrice|| |
| 2515.04.02 | 580x470x110 | 4 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25150402_LastPrice|| |
| 2515.06.02 | 680x630x110 | 6 Lines (3/4" and 1") | 1 | 1 | 03.01 | ||25150602_LastPrice|| |
Oversized box, designed for inserting elbows at the outlet
