Microclima Monoblocco HC meter kit
Series 2561
Microclima Monoblocco HC meter kit. Suitable for heating/cooling systems.

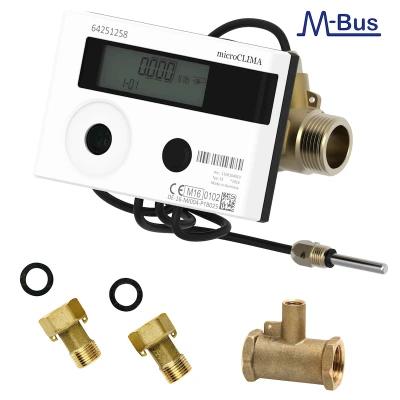

| Microclima Monoblocco meters feature an electronic calculation module directly combined with a turbine volumetric meter. Thanks to its compactness, the meter can be installed wherever space is tight; the electronics can rotate on its axis for easier reading and also be unhooked from the brass volumetric part to be fitted to the bottom of the box (recommended installation for cooling systems). |
| The volumetric meter is a single-jet type turbine with coarse filtering mesh fitted to the fluid inlet connection; the assembly fittings allow for easy maintenance. They are designed for metering the heating and air conditioning thermal energy by recording the readings in separate memory logs. |
| 2 different versions of meters are available: with or without M-Bus interface. |
| Meter operation temperature range +15 ÷ +90 °C |
| Nominal pressure (PN) 16 Bar |
| To be installed on HORIZONTAL AND VERTICAL pipes return and delivery lines |
| Electronics operation temperature range +0 ÷ +150 °C |
| Power supply: 3V Lithium |
| Battery life: 10 years (replaceable battery). External feeder code 3585.00.X0 can be supplied on request |
| Protection class IP 65 |
| PT500 ø 5mm probes - cable length 1.5m |
| Probe holder well, delivery 3/4" connection |
Download
Features:
#s# #s#
Microclima single-block meter kit without impulsive inputs and M-BUS output
| Code | Model | Size | NQ (m³/h) | M-bus | Box | Carton | Cat. | € |
| 25610400 | HC6 | 1/2" | 0,6 | NO | 1 | 1 | 03.03 | ||25610400_LastPrice|| |
| 25610410 | HC15 | 1/2" | 1,5 | NO | 1 | 1 | 03.03 | ||25610410_LastPrice|| |
| 25610500 | HC25 | 3/4" | 2,5 | NO | 1 | 1 | 03.03 | ||25610500_LastPrice|| |
Microclima single-block meter kit with 3 impulsive inputs and “HC” M-Bus heating/cooling output
| Code | Model | Size | NQ (m³/h) | M-bus | Box | Carton | Cat. | € |
| 25620400 | HC6 3IN M-BUS | 1/2" | 0,6 | YES | 1 | 1 | 03.03 | ||25620400_LastPrice|| |
| 25620410 | HC15 3IN M-BUS | 1/2" | 1,5 | YES | 1 | 1 | 03.03 | ||25620410_LastPrice|| |
| 25620500 | HC25 3IN M-BUS | 3/4" | 2,5 | YES | 1 | 1 | 03.03 | ||25620500_LastPrice|| |
Spare parts - Kit components
| Code | Model | Impulsive inputs | Box | Carton | Cat. | € |
| 35790522 | Contatore HC6 - 1/2” -- 3/4” | - | 1 | 1 | 03.03 | ||35790522_LastPrice|| |
| 35790532 | Contatore HC15 - 1/2” -- 3/4” | - | 1 | 1 | 03.03 | ||35790532_LastPrice|| |
| 35790622 | Contatore HC25 - 3/4” -- 1” | - | 1 | 1 | 03.03 | ||35790622_LastPrice|| |
| 35770512 | Contatore HC6 3IN -- 3/4” | 3 | 1 | 1 | 03.03 | ||35770512_LastPrice|| |
| 35770502 | Contatore HC15 3IN -- 3/4” | 3 | 1 | 1 | 03.03 | ||35770502_LastPrice|| |
| 35770602 | Contatore HC25 3IN -- 1” | 3 | 1 | 1 | 03.03 | ||35770602_LastPrice|| |
| 09980400 | Coppia raccordi -- 1/2” | - | 1 | 1 | 03.03 | ||09980400_LastPrice|| |
| 09980500 | Coppia raccordi -- 3/4" | - | 1 | 1 | 03.03 | ||09980500_LastPrice|| |
| 16850502 | Pozzetto portasonda -- 3/4” | - | 1 | 1 | 03.03 | ||16850502_LastPrice|| |
| 25560002 | Plug M10x1 | - | 1 | 1 | 03.03 | ||25560002_LastPrice|| |
To be installed on HORIZONTAL AND VERTICAL pipes return and delivery lines.
In installations on systems with chilled water, we recommend wall-mounted electronics to prevent condensation.
Kit components supplied in separate packages.
