Series 2564.B

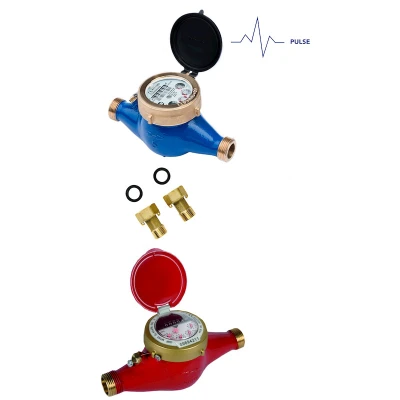

Multiple-jet turbine volumetric meter kit

Series 2564.B
Multiple-jet turbine volumetric meter kit, domestic water for high flow rates.
Domestic cold and hot water split series.
Set up for remote reading.
They feature separately installed flow rate detector and electronic module for data remote control (optional), which is wall-mounted.
Cast brass case protected with epoxy painted coating
Stamped brass closing ring nut
Transparent tempered mineral glass disk
Internal mechanism in anti-scaling and wear-resistant plastic material
Adequate surface inlet filter
Can be installed on HORIZONTAL pipes
Operating temperature max 50 °C (DCW) / 90 °C (DHW)
Nominal pressure (PN) 16 Bar
Reed cable length 1m
  • Meter kit including:
  • Meter complete with reed impulse-sender connector;
  • Fitting pair.
  • Domestic cold and hot water split series.
  • Set up for remote reading.
  • Certifications:

    Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004

    Features:

    Kit including High flow DCW Domestic Cold Water meter equipped with impulse-sender

    Code Model Measure Q3(m³/h) impulse/l Pack Outer Cat.
    25640600 VC35 1" 6,3 10 1 1 03.03 ||25640600_LastPrice||
    25640700 VC50 1"1/4 10 10 1 1 03.03 ||25640700_LastPrice||
    25640800 VC100 1"1/2 16 10 1 1 03.03 ||25640800_LastPrice||
    25640900 VC150 2" 25 10 1 1 03.03 ||25640900_LastPrice||

    Kit with High flow DHW Domestic Hot Water meter equipped with impulse-sender

    Code Model Measure Q3(m³/h) impulse/l Pack Outer Cat.
    25660600 VH35 1" 6,3 10 1 1 03.03 ||25660600_LastPrice||
    25660700 VH50 1"1/4 10 10 1 1 03.03 ||25660700_LastPrice||
    25660800 VH100 1"1/2 16 10 1 1 03.03 ||25660800_LastPrice||
    25660900 VH150 2" 25 10 1 1 03.03 ||25660900_LastPrice||

    Spare parts - Kit components

    Code Model Pack Outer Cat.
    10930700 Contatore VC35 -- 1” 1 1 03.03 ||10930700_LastPrice||
    10930800 Contatore VC50 -- 1”1/4 1 1 03.03 ||10930800_LastPrice||
    10930900 Contatore VC100 -- 1”1/2 1 1 03.03 ||10930900_LastPrice||
    10931000 Contatore VC150 -- 2” 1 1 03.03 ||10931000_LastPrice||
    09970750 Contatore VH35 -- 1” 1 1 03.03 ||09970750_LastPrice||
    09970850 Contatore VH50 -- 1”1/4 1 1 03.03 ||09970850_LastPrice||
    09970950 Contatore VH100 -- 1”1/2 1 1 03.03 ||09970950_LastPrice||
    09971050 Contatore VH150 -- 2” 1 1 03.03 ||09971050_LastPrice||
    09980600 Coppia raccordi -- 1” 1 1 03.03 ||09980600_LastPrice||
    09980700 Coppia raccordi -- 1”1/4 1 1 03.03 ||09980700_LastPrice||
    09980800 Coppia raccordi -- 1”1/2 1 1 03.03 ||09980800_LastPrice||
    09980900* Coppia raccordi -- 2” 1 1 03.03 ||09980900_LastPrice||
    09980910** Coppia raccordi -- 2” 1 1 03.03 ||09980910_LastPrice||

    ** Suitable for meter 2564.09.00

    ** Suitable for meter 2566.09.00

    Installation on HORIZONTAL pipes.

    To remotely control the data read by the meter, ordering "Twin Pulse" type electronics is recommended if "H-S/HC-S" type electronics are not already installed.

    Kit components supplied in separate packages.
