Series 3201.A

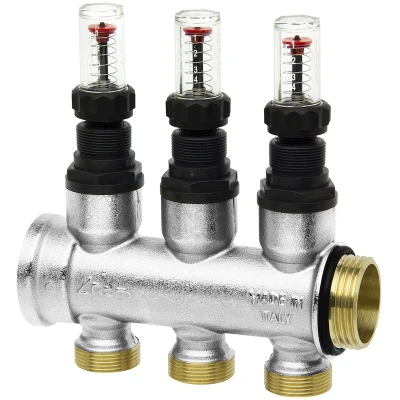

Modular manifold, complete with flow meters, with lockshield and flow indicator function.
| Temperature range 0 - 80 °C |
| Max operating pressure 10 Bar |
Download
Manifold with flow meters
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 32010600 | 1" | 1 | 1 | 10 | 30.01 | ||32010600_LastPrice|| |
| 32020600 | 1" | 2 | 1 | 10 | 30.01 | ||32020600_LastPrice|| |
| 32030600 | 1" | 3 | 1 | 10 | 30.01 | ||32030600_LastPrice|| |
| 32040600 | 1" | 4 | 1 | 10 | 30.01 | ||32040600_LastPrice|| |
| 32050600 | 1" | 5 | 1 | 10 | 30.01 | ||32050600_LastPrice|| |
Centre distance between connections via distribution manifolds 37 mm - threading Standard RBM W24,5x19F
Use fittings with RBM Standard thread for pipe connection.
Available thermal insulation shell accessory cod. 3674.X0.02
