Fixed point booster unit
Series 3235

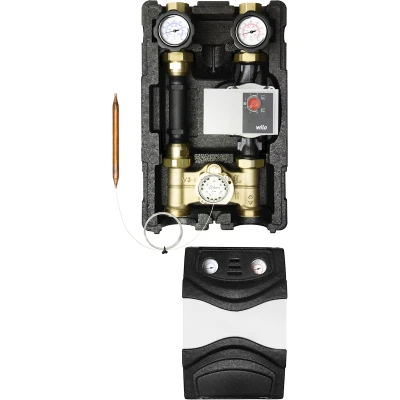

Fixed point booster unit, set up for heat metering RF25 CONT.
Fixed point mixed unit for heating only systems, complete with: High efficiency circulator, model Wilo Yonos Para 25/1-6; 3-way mixer valve equipped with upper bypass (mixed system side) and thermostatic actuator; Safety contact thermostat on supply pipe (only model RF MIX B.T) Polymer template on system 1" - L 130 mm return line for future calorimeter installation with nQ 2.5 m³/h/Microclima HC25 model (various models available); Delivery probe holder well for calorimeter; Insulation in black EPP (density 40 g/l).
| Nominal diameter: DN25 - 1" |
| Brass ball valves |
| Acetal resin (POM) check valve |
| Elastomer gaskets |
| 1" F x 1"1/2 M connections |
| Maximum operating pressure 6 bar |
| Maximum operating temperature 120 °C |
Download
RF25 CONT B.T. - Low Temperature Fixed Point Booster designed for metering purposes
| Code | Measure | Pack | Outer | Cat. | € |
| 32350600 | DN 25 | 1 | 1 | 01.01 | ||32350600_LastPrice|| |
Supply inclusive of thermostatic head model TL50.
Temperature adjustment range 25÷52 °C
RF25 CONT A.T. High Temperature Fixed Point Booster designed for metering purposes
| Code | Measure | Pack | Outer | Cat. | € |
| 32350610 | DN 25 | 1 | 1 | 01.01 | ||32350610_LastPrice|| |
Supply inclusive of thermostatic head model TL70S.
Temperature range 40÷70°C
Unit set up for installation on Multimix C32 series 3223 central manifold
