Expansion module for Kilma Set 2 controller
Series 3500
Expansion module for Kilma Set 2 regulator.
| Fixing to DIN rail. |
| 12-14V DC power supply, connection with bus control systems |
| Digital output, potential-free exchange contact, 4A, 250V AC, 2A 30V DC capacity |
| 0/10V signal analogue output (if there is one) |
| LED for status indication: inputs, outputs, power supply, bus communication |
| Removable terminals |
Download

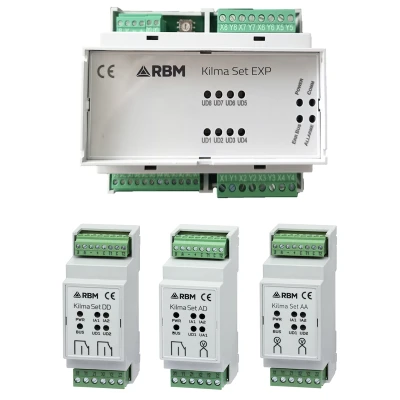

Expansion module for Kilma Set 2 controller
| Code | Model | Pack | Outer | Cat. | € |
| 35000002(a) | Kilma Set EXP | 1 | 1 | 30.08 | ||35000002_LastPrice|| |
| 35000012(b) | Kilma Set DD | 1 | 1 | 30.08 | ||35000012_LastPrice|| |
| 35000022(c) | Kilma Set AD | 1 | 1 | 30.08 | ||35000022_LastPrice|| |
| 35000032(d) | Kilma Set AA | 1 | 1 | 30.08 | ||35000032_LastPrice|| |
(a) DIN rail expansion with 6 modules fitted with 8 inputs, 8 digital outputs and 2 analogue outputs.
(b) DIN rail expansion 2 module with 2 inputs and 2 digital outputs.
(c) DIN rail expansion 2 module with 2 inputs and 1 digital output and 1 analogue output.
(d) DIN rail expansion with 2 modules with 2 digital outputs and 2 analogue outputs.
