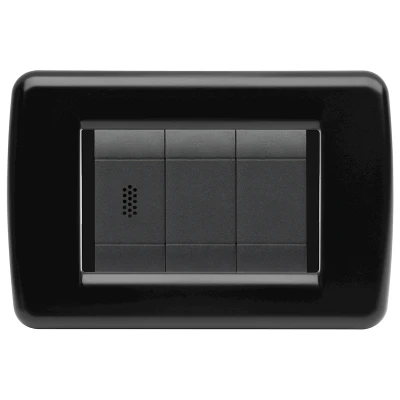

Blind room temperature probe
Series 3503
Blind room temperature probe, suitable for installation with the most common recessed civil series.
Suitable for room temperature control.
| NTC temperature probe |
| Takes up 1 position on the case body for installation. - 2-pole terminal. |
| Connection via analogue input (on Kilma Set 2 regulator or expansion). |
| Maximum probe/regulator distance: 200 m (with a 2 x 0.75 mm² cable) |
| Operating/storage temperature range: -20 ÷ +50°C |
| Storage humidity range: 10÷90% (non-condensing) |
Download
Blind room temperature probe
| Code | Model | Pack | Outer | Cat. | € |
| 35030102* | TA | 1 | 1 | 30.08 | ||35030102_LastPrice|| |
| 35038002** | TA-80 | 1 | 1 | 30.08 | ||35038002_LastPrice|| |
* Recessed installation. For the full ordering code, see the table below with the "coding method for the compatibility of civil recessed series plates".
** Wall mounted.
Recessed/wall-mounted installation (two different versions).
Plate, basket and plugs not included in the supply.
