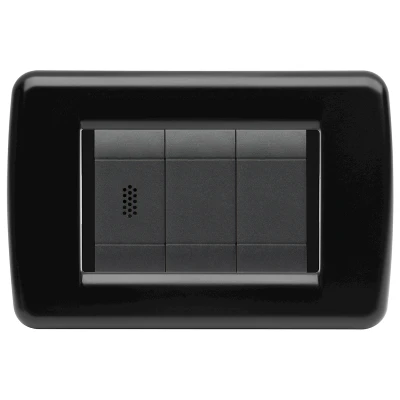

Combined temperature and relative humidity probe, blind
Series 3504
Blind room temperature and relative humidity combined probe, suitable for installation with the most common recessed civil series.
Suitable for room temperature and relative humidity control.
| NTC temperature probe |
| Temperature measurement with resolution and repeatability of 0.1°C |
| Relative humidity measurement with resolution and repeatability of 0.1% RH |
| Takes up 1 position on the case body for installation |
| 12V DC power supply, removable 4-pole terminal for easy wiring |
| Bus connection to the other system components |
| Operating temperature range: -5 ÷ +45°C |
| Storage temperature range: -20 ÷ +50 °C |
| Operating humidity range: 5÷90% |
| Storage humidity range: 10÷90% (without condensation) |
Download
Blind room temperature and humidity probe
| Code | Model | Pack | Outer | Cat. | € |
| 35040102* | THB | 1 | 1 | 30.08 | ||35040102_LastPrice|| |
| 35048002** | THB-80 | 1 | 1 | 30.08 | ||35048002_LastPrice|| |
* Recessed installation. For the full ordering code, see the table below with the "coding method for the compatibility of civil recessed series plates".
** Wall mounted.
Recessed/wall-mounted installation (two different versions).
Plate, basket and plugs not included in the supply.
