Series 3505

Combined room temperature and relative humidity probe, with LED display

Series 3505

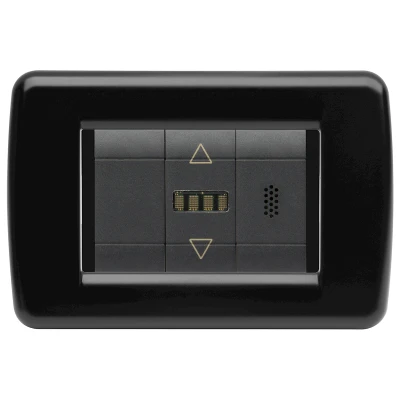

Room temperature and relative humidity combined probe with LED display, suitable for installation with the most common recessed civil series.

Suitable for room temperature and relative humidity control.

Temperature measurement with resolution and repeatability of 0.1°C
Relative humidity measurement with resolution and repeatability of 0.1% RH
Takes up 2 positions on the case body for installation
12V DC power supply, removable 4-pole terminal for easy wiring
Bus connection to the other system components
High readability LED display, in standby it switches to low brightness mode
Operating temperature range: -5 ÷ +45°C
Storage temperature range: -20 ÷ +50 °C
Operating humidity range: 5÷90%
Storage humidity range: 10÷90% (without condensation)

Ambient temperature and humidity probe with LCD display.

Code Model Pack Outer Cat.
35050102* THB Led 1 1 30.08 ||35050102_LastPrice||

* Recessed installation. For the full ordering code, see the table below with the "coding method for the compatibility of civil recessed series plates".

Plate, basket and plugs not included in the supply.
