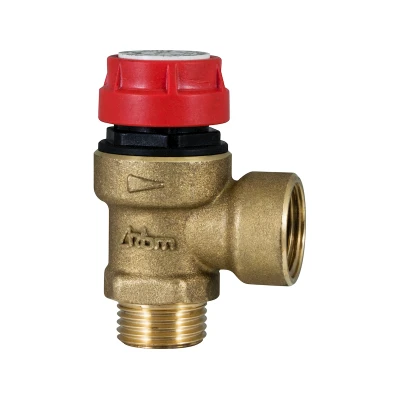

Ordinary safety valve for neutral fluids and gases
Series 352
Standard safety relief valve with controlled rise for fluids and neutral gases.
| Brass body. |
| Stainless steel AISI 302 spring. |
| Elastomer obturator seal. |
| Elastomer diaphragm. |
| Threaded angle connections MF UNI-EN-ISO 228. |
| Maximum admissible pressure PS 10 bar |
| Max operating temperature 110 °C |
| Orifice diameter 15mm |
| Opening overpressure <20% Pt |
| Closing discard pressure -20% |
| Allowed fluid water-air (Gr.2) |
Download
Certifications:
PED | PESR
#s# #s#
#s# #s#
Standard safety relief valve male 1/2" x female 1/2" connection
| Code | Calibration (bar) | Max. Pwr. (kW) | Box | Carton | Cat. | € |
| 03520410 | 1,50 | 48 | 1 | 50 | 07.01 | ||03520410_LastPrice|| |
| 03520420 | 2,00 | 55 | 1 | 50 | 07.01 | ||03520420_LastPrice|| |
| 03520430 | 2,50 | 68 | 1 | 50 | 07.01 | ||03520430_LastPrice|| |
| 03520440 | 3,00 | 75 | 1 | 50 | 07.01 | ||03520440_LastPrice|| |
| 03520450 | 3,50 | 83 | 1 | 50 | 07.01 | ||03520450_LastPrice|| |
| 03520460 | 4,00 | 96 | 1 | 50 | 07.01 | ||03520460_LastPrice|| |
| 03520470 | 4,50 | 103 | 1 | 50 | 07.01 | ||03520470_LastPrice|| |
| 03520480 | 5,00 | 109 | 1 | 50 | 07.01 | ||03520480_LastPrice|| |
| 03520490 | 6,00 | 128 | 1 | 50 | 07.01 | ||03520490_LastPrice|| |
| 03520471 | 7,00 | 148 | 1 | 50 | 07.01 | ||03520471_LastPrice|| |
| 03520481 | 8,00 | 166 | 1 | 50 | 07.01 | ||03520481_LastPrice|| |
| 03520411 | 10,00 | 181 | 1 | 50 | 07.01 | ||03520411_LastPrice|| |
Standard safety relief valve male 1/2" x female 3/4" connection
| Code | Calibration (bar) | Max. Pwr. (kW) | Box | Carton | Cat. | € |
| 03520510 | 1,50 | 48 | 1 | 50 | 07.01 | ||03520510_LastPrice|| |
| 03520520 | 2,00 | 55 | 1 | 50 | 07.01 | ||03520520_LastPrice|| |
| 03520530 | 2,50 | 68 | 1 | 50 | 07.01 | ||03520530_LastPrice|| |
| 03520540 | 3,00 | 75 | 1 | 50 | 07.01 | ||03520540_LastPrice|| |
| 03520550 | 3,50 | 83 | 1 | 50 | 07.01 | ||03520550_LastPrice|| |
| 03520560 | 4,00 | 96 | 1 | 50 | 07.01 | ||03520560_LastPrice|| |
| 03520570 | 4,50 | 103 | 1 | 50 | 07.01 | ||03520570_LastPrice|| |
| 03520580 | 5,00 | 109 | 1 | 50 | 07.01 | ||03520580_LastPrice|| |
| 03520590 | 6,00 | 128 | 1 | 50 | 07.01 | ||03520590_LastPrice|| |
| 03520571 | 7,00 | 148 | 1 | 50 | 07.01 | ||03520571_LastPrice|| |
| 03520581 | 8,00 | 166 | 1 | 50 | 07.01 | ||03520581_LastPrice|| |
| 03520511 | 10,00 | 181 | 1 | 50 | 07.01 | ||03520511_LastPrice|| |
