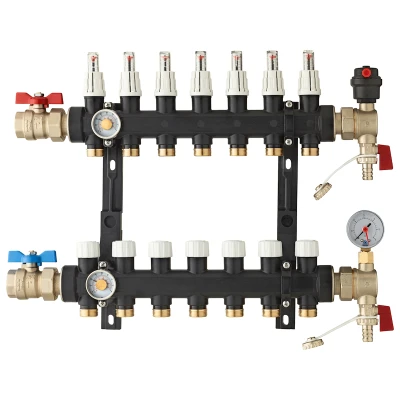

Polymer compact manifold kit
Series 3694
Compact polymer manifolds kit.
| Temperature range 5÷80 °C |
| Max. operating pressure 8 Bar |
Polymer compact manifold kit
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 3694.02.50 | 1" | 2+2 | 1 | 1 | 30.01 | ||36940250_LastPrice|| |
| 3694.03.50 | 1" | 3+3 | 1 | 1 | 30.01 | ||36940350_LastPrice|| |
| 3694.04.50 | 1" | 4+4 | 1 | 1 | 30.01 | ||36940450_LastPrice|| |
| 3694.05.50 | 1" | 5+5 | 1 | 1 | 30.01 | ||36940550_LastPrice|| |
| 3694.06.50 | 1" | 6+6 | 1 | 1 | 30.01 | ||36940650_LastPrice|| |
| 3694.07.50 | 1" | 7+7 | 1 | 1 | 30.01 | ||36940750_LastPrice|| |
| 3694.08.50 | 1" | 8+8 | 1 | 1 | 30.01 | ||36940850_LastPrice|| |
| 3694.09.50 | 1" | 9+9 | 1 | 1 | 30.01 | ||36940950_LastPrice|| |
| 3694.10.50 | 1" | 10+10 | 1 | 1 | 30.01 | ||36941050_LastPrice|| |
| 3694.11.50 | 1" | 11+11 | 1 | 1 | 30.01 | ||36941150_LastPrice|| |
| 3694.12.50 | 1" | 12+12 | 1 | 1 | 30.01 | ||36941250_LastPrice|| |
| 3694.13.50 | 1" | 13+13 | 1 | 1 | 30.01 | ||36941350_LastPrice|| |
| 3694.14.50 | 1" | 14+14 | 1 | 1 | 30.01 | ||36941450_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
