Series 3758.A

Valvola di zona motorizzabile a 2 vie Fancoil

Series 3758.A

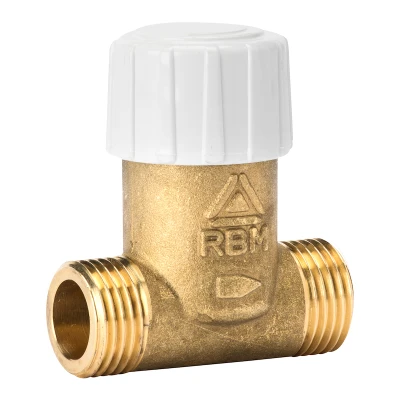

Fancoil 2-way motorised zone valve. Normally closed with actuator not powered.
Nickel brass body.
EPDM+PEROX shutter and seal.
EPDM+PEROX rod seals.
AISI302 stainless steel springs.
Cap for manual opening in ABS.
Threaded in-line connections FF UNI-EN-ISO 228.
Max operating temperature +95 °C
Max operating pressure 10 Bar
Max differential pressure 1 Bar

Valvola di zona motorizzabile a 2 vie Fancoil

Code Measure Kv (m³/h) Pack Cat.
37580420 G 1/2" 1.64 1 02.01 ||37580420_LastPrice||
37580520 G 3/4" 2.87 1 02.01 ||37580520_LastPrice||
