Press fitting for multilayer pipe
Series 3902

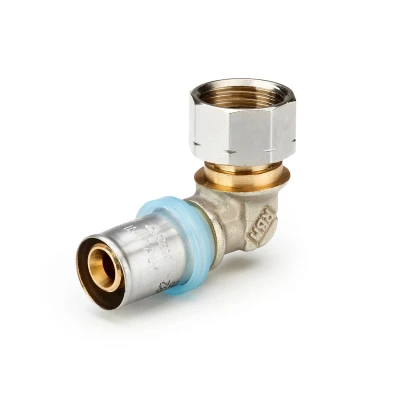

Press fitting for multilayer pipe - bent 90° - rotary flat seat
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 e 20x2; TH, H, B for Ø 26x3;
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Angle threaded connection F UNI-EN-ISO 228 |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#ss#
#ss#
#ss#
#ss#
Press fitting for multilayer pipe - bent 90° - rotary flat seat
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 39021620 | 16x2 | 1/2" M | 1 | 200 | 10.02 | ||39021620_LastPrice|| |
| 39022020 | 20x2 | 1/2" M | 1 | 160 | 10.02 | ||39022020_LastPrice|| |
| 39021630 | 16x2 | 3/4" M | 1 | 160 | 10.02 | ||39021630_LastPrice|| |
| 39022030 | 20x2 | 3/4" M | 1 | 160 | 10.02 | ||39022030_LastPrice|| |
| 39022630 | 26x3 | 3/4" M | 1 | 80 | 10.02 | ||39022630_LastPrice|| |
| 39022640 | 26x3 | 1" M | - | - | 10.02 | ||39022640_LastPrice|| |
Size A: Outside Ø x pipe thickness
