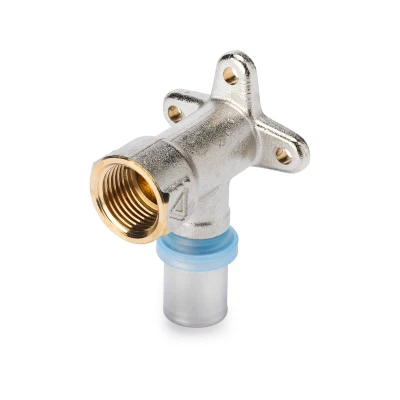

Press fitting for multilayer pipe with flanged elbow and F gas connection
Series 4149.A
Press fitting for multilayer pipe - flanged elbow - standard length - F Gas connection
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Threaded connection F UNI-EN-ISO 228 |
| Max operating pressure 95°C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#ss#
#ss#
Press fitting for multilayer pipe - flanged elbow - standard length - F Gas connection
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 41490400 | 16x2 | 1/2" F | 10 | 60 | 10.02 | ||41490400_LastPrice|| |
| 41490410 | 20x2 | 1/2" F | 10 | 60 | 10.02 | ||41490410_LastPrice|| |
| 41490510 | 20x2 | 3/4" F | 10 | 100 | 10.02 | ||41490510_LastPrice|| |
Size A: Outside Ø x pipe thickness
Fixing on specific Fixing Plate code 934.00.00
