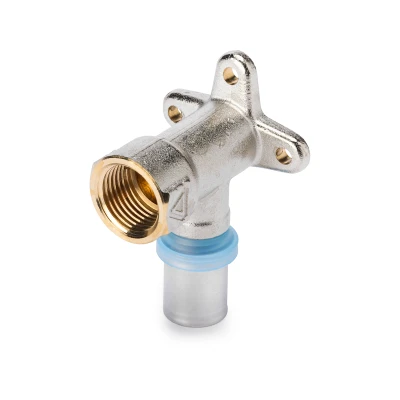

Press fitting for multilayer pipe with flanged elbow and F gas connection
Series 4149.B
Press fitting for multilayer pipe - flanged elbow - XL 50 mm length - F Gas connection
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Threaded connection F UNI-EN-ISO 228 |
| Max operating pressure 95°C |
| Max operating pressure 10 Bar |
Download
Certifications:
Press fitting for multilayer pipe - flanged elbow - XL length 77 mm - F Gas connection
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 4149.04.90 | 16x2 | 1/2" F | 5 | 40 | 10.02 | ||41490490_LastPrice|| |
Size A: Outside Ø x pipe thickness
