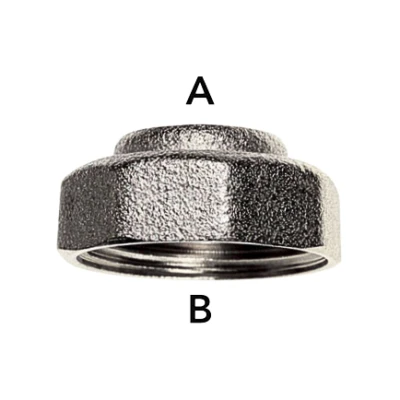

Perforated head cap for manifolds
Series 42.C
Perforated head cap for manifolds.
| Nickel brass body. |
| PTFE seal. |
| Connection to manifold F UNI-EN-ISO 228. |
| F 3/8" head connection UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Perforated head cap
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 42.05.30 | G 3/8" | G 3/4" | 10 | 100 | 09.01 | ||00420530_LastPrice|| |
| 42.06.30 | G 3/8" | G 1" | 10 | 100 | 09.01 | ||00420630_LastPrice|| |
