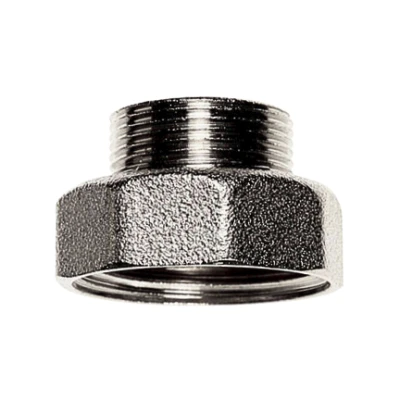

Head connection for manifolds with copper or polyethylene fitting connection.
Series 43.B
Head connection for manifolds with copper or polyethylene fitting connection.
| Nickel-plated brass body. |
| PTFE seal. |
| Threaded connections: |
| M standard RBM. |
| F UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Head connection for copper or polyethylene fitting
| Code | Size | Box | Carton | Cat. | € |
| 00430500 | G 3/4" | 10 | 100 | 09.01 | ||00430500_LastPrice|| |
| 00430600 | G 1" | 10 | 100 | 09.01 | ||00430600_LastPrice|| |
Standard RBM thread W 24.5x19 F
