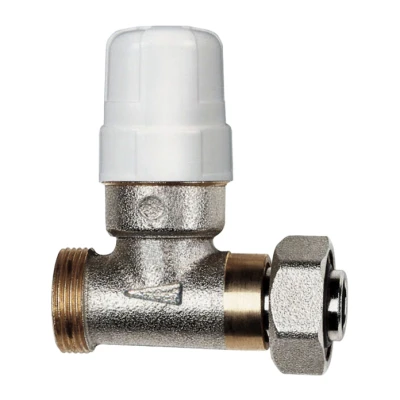

Straight valve with thermostatic option for junction circuits
Series 556
Thermostatically controlled straight valve for branch circuits from modular manifolds (standard RBM connections).
| Nickel-plated brass body. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Rotary connection to manifold, threaded F standard RBM with seal. |
| Threaded M standard RBM connection for copper, polyethylene and multilayer pipe fittings. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
| Code | Size | Box | Carton | Cat. |
| 05560000 | RBM | 10 | 10 | 04.01 |
RBM Standard Thread (W24,5x19F)
Can be coupled to thermoelectric actuatorss RBM code 306.00.X2
