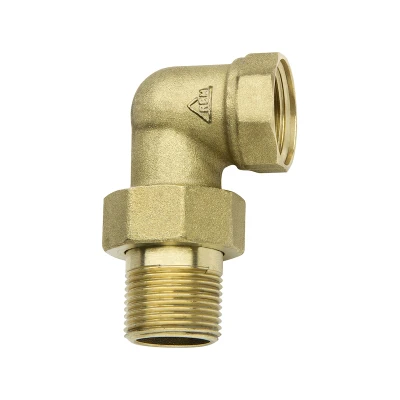

Three-piece elbow fitting.
Series 5.B
Three-piece elbow fitting.
| Brass body. |
| O-Ring seal in FKM. |
| Threaded connections MF UNI-EN-ISO 228. |
| Max operating temperature 180 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
Elbow type three-piece fitting
| Code | Measure | Pack | Outer | Cat. | € |
| 00050310 | 3/8" | 10 | 60 | 09.01 | ||00050310_LastPrice|| |
| 00050410 | 1/2" | 10 | 60 | 09.01 | ||00050410_LastPrice|| |
| 00050510 | 3/4" | 10 | 40 | 09.01 | ||00050510_LastPrice|| |
| 00050610 | 1" | 10 | 40 | 09.01 | ||00050610_LastPrice|| |
| 00050710 | 1"1/4 | 8 | 32 | 09.01 | ||00050710_LastPrice|| |
| 00050810 | 1"1/2 | 4 | 16 | 09.01 | ||00050810_LastPrice|| |
| 00050910 | 2" | 2 | 8 | 09.01 | ||00050910_LastPrice|| |
Suitable for gas, air, hot and cold drinking water, hydrocarbons, solar systems.
