Press fitting for multilayer pipe straight intermediate
Series 671

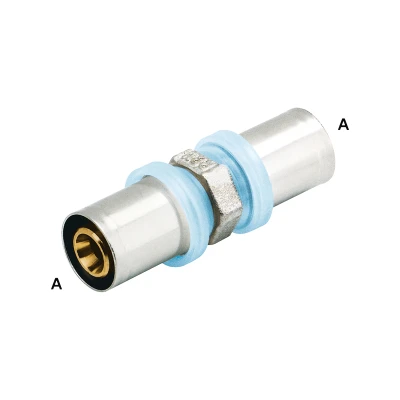

Press fitting for multilayer pipe - straight - intermediate
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
Externally nickel-plated brass body |
Elastomer seals |
Stainless steel pipe clamping bush |
Dielectric pipe clamp cover in PE |
Max operating temperature 95 °C |
Max operating pressure 10 Bar |
Download
Press fitting for multilayer pipe - straight - intermediate
Code | Size A | Pack | Outer | Cat. | € |
06711600 | 16x2 | 10 | 240 | 10.02 | ||06711600_LastPrice|| |
06711800 | 18x2 | 10 | 200 | 10.02 | ||06711800_LastPrice|| |
06712000 | 20x2 | 10 | 200 | 10.02 | ||06712000_LastPrice|| |
06712600 | 26x3 | 10 | 120 | 10.02 | ||06712600_LastPrice|| |
06713200 | 32x3 | 5 | 100 | 10.02 | ||06713200_LastPrice|| |
06714000 | 40x3,5 | 5 | 60 | 10.02 | ||06714000_LastPrice|| |
06715000 | 50x4 | 4 | 40 | 10.02 | ||06715000_LastPrice|| |
06716300 | 63x4,5 | 3 | 18 | 10.02 | ||06716300_LastPrice|| |
Size A: Outside Ø x pipe thickness
