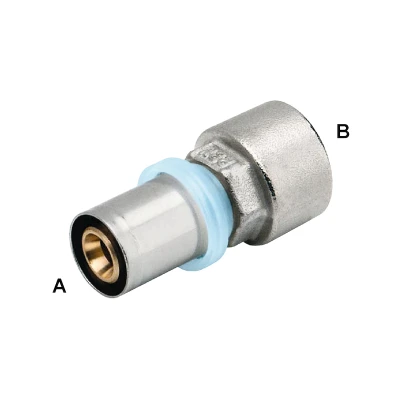

Press fitting for straight multilayer pipe with female gas connection
Series 672
Press fitting for multilayer pipe - straight - female gas connection
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
Externally nickel-plated brass body |
Elastomer seals |
Stainless steel pipe clamping bush |
Dielectric pipe clamp cover in PE |
Straight threaded connection F UNI-EN-ISO 228 |
Max operating temperature 95 °C |
Max operating pressure 10 Bar |
Download
Press fitting for multilayer pipe - straight - female gas connection
Code | Size A | Size B | Pack | Outer | Cat. | € |
06721620 | 16x2 | 1/2" F | 10 | 200 | 10.02 | ||06721620_LastPrice|| |
06721630 | 16x2 | 3/4" F | - | - | 10.02 | ||06721630_LastPrice|| |
06721820 | 18x2 | 1/2" F | 10 | 200 | 10.02 | ||06721820_LastPrice|| |
06721830 | 18x2 | 3/4" F | 10 | 160 | 10.02 | ||06721830_LastPrice|| |
06722020 | 20x2 | 1/2" F | 10 | 200 | 10.02 | ||06722020_LastPrice|| |
06722030 | 20x2 | 3/4" F | 10 | 160 | 10.02 | ||06722030_LastPrice|| |
06722630 | 26x3 | 3/4" F | 10 | 100 | 10.02 | ||06722630_LastPrice|| |
06722640 | 26x3 | 1" F | 10 | 100 | 10.02 | ||06722640_LastPrice|| |
06723240 | 32x3 | 1" F | 5 | 80 | 10.02 | ||06723240_LastPrice|| |
06724040 | 40x3,5 | 1" F | 5 | 40 | 10.02 | ||06724040_LastPrice|| |
06724050 | 40x3,5 | 1"1/4 F | 5 | 40 | 10.02 | ||06724050_LastPrice|| |
06725060 | 50x4 | 1"1/2 F | 5 | 20 | 10.02 | ||06725060_LastPrice|| |
06726370 | 63x4,5 | 2" F | 1 | 16 | 10.02 | ||06726370_LastPrice|| |
Size A: Outside Ø x pipe thickness
