Press fitting for multilayer pipe angle intermediate
Series 674

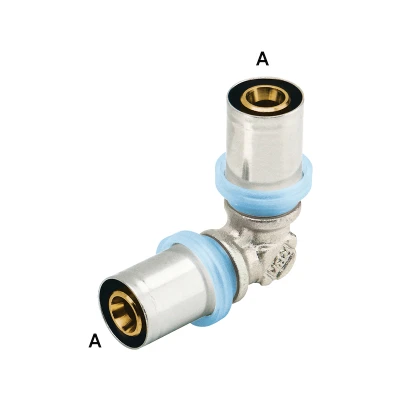

Press fitting for multilayer pipe - angle - intermediate
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#ss#
#ss#
#ss#
#ss#
Press fitting for multilayer pipe - angle - intermediate
| Code | Size A | Pack | Outer | Cat. | € |
| 06741600 | 16x2 | 10 | 160 | 10.02 | ||06741600_LastPrice|| |
| 06741800 | 18x2 | 10 | 160 | 10.02 | ||06741800_LastPrice|| |
| 06742000 | 20x2 | 10 | 160 | 10.02 | ||06742000_LastPrice|| |
| 06742600 | 26x3 | 5 | 80 | 10.02 | ||06742600_LastPrice|| |
| 06743200 | 32x3 | 5 | 60 | 10.02 | ||06743200_LastPrice|| |
| 06744000 | 40x3,5 | 5 | 40 | 10.02 | ||06744000_LastPrice|| |
| 06745000 | 50x4 | 1 | 16 | 10.02 | ||06745000_LastPrice|| |
| 06746300 | 63x4,5 | 1 | 16 | 10.02 | ||06746300_LastPrice|| |
Size A: Outside Ø x pipe thickness
