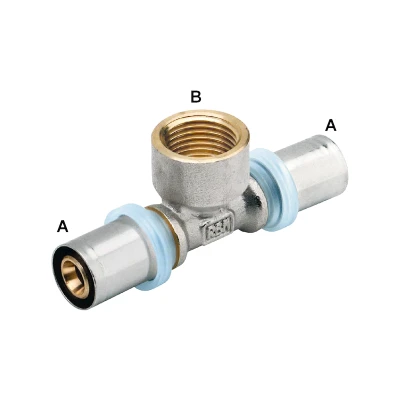

Press fitting for multilayer 'T' pipe with female gas connection
Series 678
Press fitting for multilayer pipe - T-shaped - gas central female connection
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Threaded connection F UNI-EN-ISO 228 |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#ss#
#ss#
#ss#
#ss#
Press fitting for multilayer pipe - T-shaped - gas central female connection
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 06781620 | 16x2 | 1/2" F | 10 | 120 | 10.02 | ||06781620_LastPrice|| |
| 06781820 | 18x2 | 1/2" F | 5 | 80 | 10.02 | ||06781820_LastPrice|| |
| 06781830 | 18x2 | 3/4" F | 5 | 80 | 10.02 | ||06781830_LastPrice|| |
| 06782020 | 20x2 | 1/2" F | 10 | 80 | 10.02 | ||06782020_LastPrice|| |
| 06782030 | 20x2 | 3/4" F | 10 | 80 | 10.02 | ||06782030_LastPrice|| |
| 06782630 | 26x3 | 3/4" F | 5 | 60 | 10.02 | ||06782630_LastPrice|| |
| 06783230 | 32x3 | 3/4" F | 5 | 40 | 10.02 | ||06783230_LastPrice|| |
| 06783240 | 32x3 | 1" F | 5 | 40 | 10.02 | ||06783240_LastPrice|| |
| 06784040 | 40x3,5 | 1" F | 5 | 20 | 10.02 | ||06784040_LastPrice|| |
| 06784050 | 40x3,5 | 1"1/4 F | 5 | 24 | 10.02 | ||06784050_LastPrice|| |
| 06785040 | 50x4 | 1" F | 1 | 12 | 10.02 | ||06785040_LastPrice|| |
Size A: Outside Ø x pipe thickness
