Raccordo a pressare per tubo multistrato a "T" con attacco femmina laterale gas
Series 679
Press fitting for multilayer pipe - T-shaped - gas side female connection -double branch.
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Threaded connection F UNI-EN-ISO 228 |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#s# #s#
#s# #s#
#s# #s#
#s# #s#

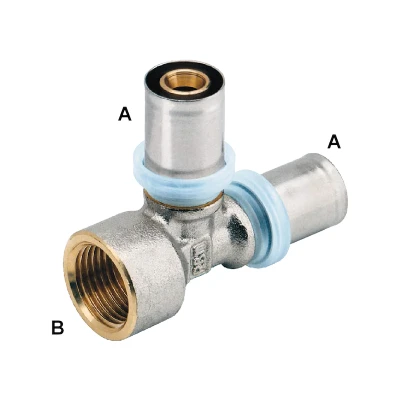

Press fitting for multilayer pipe - T-shaped - gas side female connection
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 06791620 | 16x2 | 1/2" F | 10 | 60 | 10.02 | ||06791620_LastPrice|| |
| 06791820 | 18x2 | 1/2" F | 10 | 60 | 10.02 | ||06791820_LastPrice|| |
| 06791830 | 18x2 | 3/4" F | 10 | 60 | 10.02 | ||06791830_LastPrice|| |
| 06792020 | 20x2 | 1/2" F | 10 | 60 | 10.02 | ||06792020_LastPrice|| |
| 06792030 | 20x2 | 3/4" F | 10 | 60 | 10.02 | ||06792030_LastPrice|| |
| 06792630 | 26x3 | 3/4" F | 10 | 40 | 10.02 | ||06792630_LastPrice|| |
| 06793240 | 32x3 | 1" F | 5 | 30 | 10.02 | ||06793240_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
