Compression fitting for polyethylene pipe.
Series 71

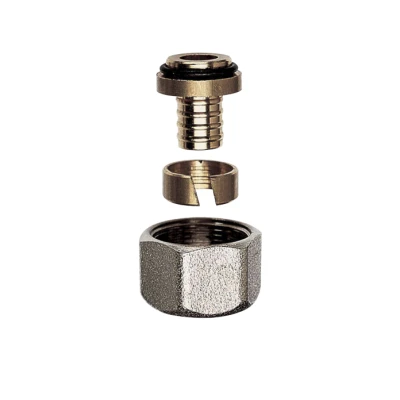

Compression fitting for polyethylene pipe.
| Brass nut, core and pipe clamping ogive. |
| Nickel plated nut. |
| Elastomer seal ring. |
| Standard RBM threaded F connection. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
Polyethylene pipe fitting
| Code | Measure | Pack | Outer | Cat. | € |
| 00711030 | 10x1,2 | 10 | 100 | 09.01 | ||00711030_LastPrice|| |
| 00711200 | 12x2 | 10 | 100 | 09.01 | ||00711200_LastPrice|| |
| 00711220 | 12x1,3 | 10 | 100 | 09.01 | ||00711220_LastPrice|| |
| 00711400 | 14x2 | 10 | 100 | 09.01 | ||00711400_LastPrice|| |
| 00711500 | 15x2,5 | 10 | 100 | 09.01 | ||00711500_LastPrice|| |
| 00711510 | 15x2 | 10 | 100 | 09.01 | ||00711510_LastPrice|| |
| 00711600 | 16x2 | 10 | 100 | 09.01 | ||00711600_LastPrice|| |
| 00711620 | 16x1,5 | 10 | 100 | 09.01 | ||00711620_LastPrice|| |
| 00711630 | 16x2,7 | 10 | 100 | 09.01 | ||00711630_LastPrice|| |
| 00711640 | 16x2,2 | 10 | 100 | 09.01 | ||00711640_LastPrice|| |
| 00711700 | 17x2 | 10 | 100 | 09.01 | ||00711700_LastPrice|| |
| 00711800 | 18x2,5 | 10 | 100 | 09.01 | ||00711800_LastPrice|| |
| 00711830 | 18x2 | 10 | 100 | 09.01 | ||00711830_LastPrice|| |
| 00712010 | 20x2 | 10 | 100 | 09.01 | ||00712010_LastPrice|| |
| 00712040 | 20x2,8 | 10 | 100 | 09.01 | ||00712040_LastPrice|| |
Standard RBM thread W 24.5x19 F
Size: Outside Ø x pipe thickness
