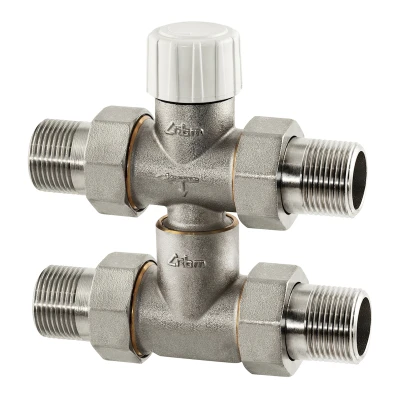

4-way motorised compact zone valve
Series 736
Compact, motorized 4-way zone valve. Normally closed on the straight way with servomotor fitted, not powered. Can be coupled to Monoblock coplanar manifolds. Prepared for electrothermal servomotors code 2944.00. X2.
| Nickel-plated brass body. |
| Obturator and seal in elastomer. |
| Elastomer rod seals. |
| Stainless steel springs. |
| Handwheel for manual opening in ABS. |
| In-line threaded union couplings FF UNI-EN-ISO 228. |
| Centre distance 50 ÷ 55mm. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
| Max differential pressure 1 Bar |
Download
4 way compact, motorizable zone valve - filling unit inlets
| Code | Size | Ways | Box | Carton | Cat. | € |
| 07360420 | G 1/2" | 4 | 1 | 10 | 02.01 | ||07360420_LastPrice|| |
| 07360520 | G 3/4" | 4 | 1 | 10 | 02.01 | ||07360520_LastPrice|| |
| 07360620 | G 1" | 4 | 1 | 10 | 02.01 | ||07360620_LastPrice|| |
Predisposta per servomotori elettrotermici cod. 2944.00. X2
