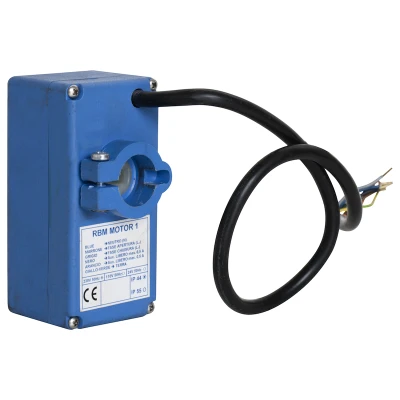

On-Off electromechanical servocontrol for zone valve
Series 7504
On-Off electro-mechanical actuator for zone valve on the Modular hydraulic group.
| Auxiliary micro switch with potential-free contacts |
| Power supply cable 6 X 0,50 mm² L=100 mm |
| Power supply voltage 230V 50/60Hz - 24V 50/60 Hz |
| 4VA absorption |
| Operating temperature 0 - 50 °C |
| IP44 protection rating |
Download
Certifications:
Electromechanical actuator for Modular hydraulic unit zone valve
| Code | Power supply | Pack | Outer | Cat. | € |
| 07504005 | 230V AC | 1 | 1 | 60.01 | ||07504005_LastPrice|| |
| 07504015 | 24V AC | 1 | 1 | 60.01 | ||07504015_LastPrice|| |
