Press fitting for multilayer pipe with flat-sealing gas thread
Series 812
Press fitting for multilayer pipe - rotary nut - flat seat gas thread
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3;
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Threaded connection UNI-EN-ISO 228 |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#s# #s#
#s# #s#
#s# #s#
#s# #s#
Press fitting for multilayer pipe - rotary nut - flat seat gas thread
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 08121610 | 16x2 | 3/8" F | 10 | 200 | 10.02 | ||08121610_LastPrice|| |
| 08121620 | 16x2 | 1/2" F | 10 | 200 | 10.02 | ||08121620_LastPrice|| |
| 08121630 | 16x2 | 3/4" F | 10 | 160 | 10.02 | ||08121630_LastPrice|| |
| 08121830 | 18x2 | 3/4" F | 10 | 160 | 10.02 | ||08121830_LastPrice|| |
| 08122020 | 20x2 | 1/2" F | 10 | 160 | 10.02 | ||08122020_LastPrice|| |
| 08122030 | 20x2 | 3/4" F | 10 | 160 | 10.02 | ||08122030_LastPrice|| |
| 08122630 | 26x3 | 3/4" F | 10 | 100 | 10.02 | ||08122630_LastPrice|| |
| 08122640 | 26x3 | 1" F | 10 | 100 | 10.02 | ||08122640_LastPrice|| |
| 08122650 | 26x3 | 1"1/4 F | 1 | 50 | 10.02 | ||08122650_LastPrice|| |
| 08123240 | 32x3 | 1" F | 10 | 80 | 10.02 | ||08123240_LastPrice|| |
| 08123250 | 32x3 | 1"1/4 F | 10 | 80 | 10.02 | ||08123250_LastPrice|| |

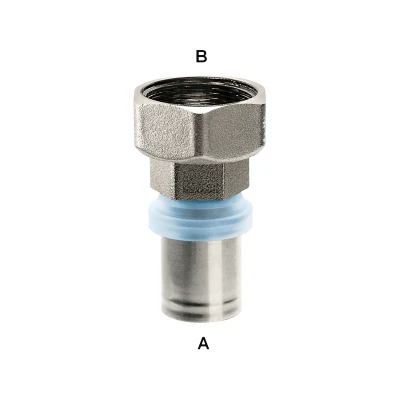

Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
