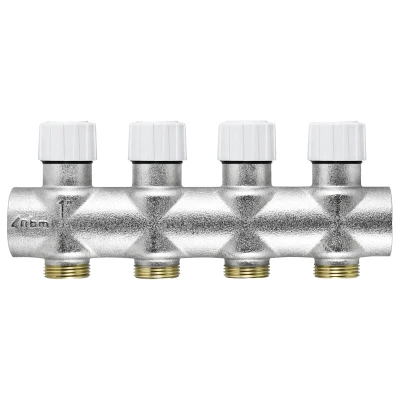

Compact multi-way manifold complete with thermostatically controlled valves
Series 829.A
Multi-way compact manifold complete with valves with thermostatic option and hand wheel.
| Temperature range 0 - 100 °C |
| Max operating pressure 10 Bar |
Download
Manifold with thermostatic valves
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 08292630 | 1" | 2 | 1 | 1 | 60.01 | ||08292630_LastPrice|| |
| 08290630 | 1" | 3 | 1 | 1 | 60.01 | ||08290630_LastPrice|| |
| 08300630 | 1" | 4 | 1 | 1 | 60.01 | ||08300630_LastPrice|| |
| 08310630 | 1" | 5 | 1 | 1 | 60.01 | ||08310630_LastPrice|| |
| 08320630 | 1" | 6 | 1 | 1 | 60.01 | ||08320630_LastPrice|| |
| 08340630 | 1" | 8 | 1 | 1 | 60.01 | ||08340630_LastPrice|| |
| 08350630 | 1" | 9 | 1 | 1 | 60.01 | ||08350630_LastPrice|| |
| 08360630 | 1" | 10 | 1 | 1 | 60.01 | ||08360630_LastPrice|| |
| 08370630 | 1" | 11 | 1 | 1 | 60.01 | ||08370630_LastPrice|| |
| 08371230 | 1" | 12 | 1 | 1 | 60.01 | ||08371230_LastPrice|| |
| 08371330 | 1" | 13 | 1 | 1 | 60.01 | ||08371330_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
