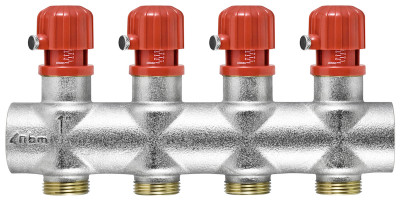

Multi-way compact manifold, complete with micrometric lockshield regulating valves
Series 829.B
Multi-way compact manifold, complete with micrometric lockshield regulating valves with graduated hand wheel.
| Temperature range 0 - 100 °C |
| Max operating pressure 10 Bar |
Download
Manifold with micrometric lockshield regulating valves
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 08292610 | 1" | 2 | 1 | 1 | 60.01 | ||08292610_LastPrice|| |
| 08290610 | 1" | 3 | 1 | 1 | 60.01 | ||08290610_LastPrice|| |
| 08300610 | 1" | 4 | 1 | 1 | 60.01 | ||08300610_LastPrice|| |
| 08310610 | 1" | 5 | 1 | 1 | 60.01 | ||08310610_LastPrice|| |
| 08320610 | 1" | 6 | 1 | 1 | 60.01 | ||08320610_LastPrice|| |
| 08330610 | 1" | 7 | 1 | 1 | 60.01 | ||08330610_LastPrice|| |
| 08340610 | 1" | 8 | 1 | 1 | 60.01 | ||08340610_LastPrice|| |
| 08350610 | 1" | 9 | 1 | 1 | 60.01 | ||08350610_LastPrice|| |
| 08360610 | 1" | 10 | 1 | 1 | 60.01 | ||08360610_LastPrice|| |
| 08370610 | 1" | 11 | 1 | 1 | 60.01 | ||08370610_LastPrice|| |
| 08371210 | 1" | 12 | 1 | 1 | 60.01 | ||08371210_LastPrice|| |
| 08371310 | 1" | 13 | 1 | 1 | 60.01 | ||08371310_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
