Series 963

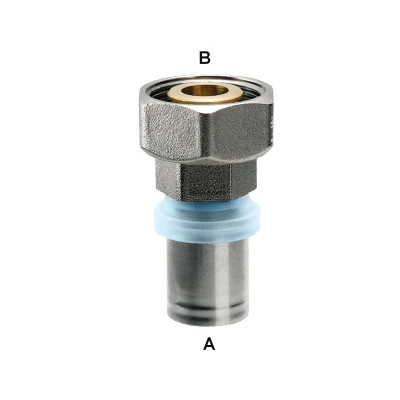

Press fitting for metal-plastic multilayer pipe - rotary nut - Euroconus seal gas thread

Series 963
Press fitting for metal-plastic multilayer pipe.
  • Multi-clamp fitting.
  • Compatible with clamps series:
  • TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2;
  • TH, H, B for Ø 26x3;
  • TH, H for Ø 32x3;
  • TH for Ø 40x3.5 - 50x4 e 63x4.5
  • Externally nickel-plated brass body
    Elastomer seals
    Stainless steel pipe clamping bush
    Dielectric pipe clamp cover in PE
    Euroconus threaded connection G3/4" UNI-EN-ISO 228
    Max operating temperature 95 °C
    Max operating pressure 10 Bar

    Certifications:

    DHW

    #ss#

    #ss#

    #ss#

    #ss#

    Press fitting for metal-plastic multilayer pipe - rotary nut - Euroconus seal gas thread

    Code Size A Size B Pack Outer Cat.
    09631630 16x2 Euroconus 10 100 10.02 ||09631630_LastPrice||
    09631830 18x2 Euroconus 10 100 10.02 ||09631830_LastPrice||
    09632030 20x2 Euroconus 10 100 10.02 ||09632030_LastPrice||
    09632630 26x3 Euroconus 10 50 10.02 ||09632630_LastPrice||

    Size A: Outside Ø x pipe thickness
