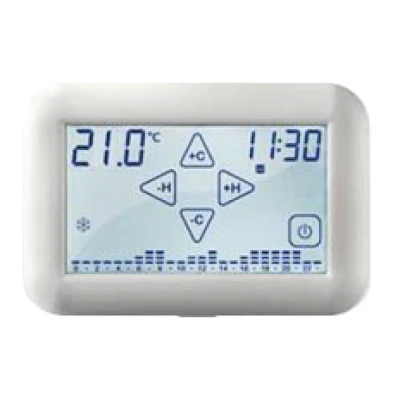

Umiclima Touch Screen
Digital electronic room programmable thermo-humidistat
Series 2295
Wall mounted digital electronic ambient programmable thermostat with humidity sensor.
Power supply 2 AAA 1.5V alkaline batteries Autonomy (Stand-by): 2 years Automatic battery discharge control with 2 intervention thresholds Graphical display of set temperature, time, measured temperature, measured relative humidity and calculated dew point Temperature control Second relay for dehumidifier summer intervention control based on dew temperature control LCD touch screen display Battery replacement without loss of data within 1 minute Setting range: 5°C to 30°C in WINTER programme, 15°C to 35°C in SUMMER programme Setting pitch: 0.2°C Adjustable thermal differential: 0.2 to 2.0°C (intervention range + 0.1°C to +1.0°C) Possibility of programming any temperature within the setting ranges at any half-hour of the day for each day of the week Contacts capacity: 230Vac - 5A (resistive load) Wall mounted Dimensions (LxHxD): 123.5x83.5x31mm Available colours: white or anthracite grey Class 1 temperature control device Contribution of the temperature control device to the seasonal efficiency of room heating: 1%. (in accordance with Directive 2010/30/EC Regulation 811/2013/EU)
Download
Certifications:
| Code | Model | Colour | Box | Carton | Cat. | € |
| 22950022 | UMICLIMA TOUCH | White | 1 | 1 | 30.08 | ||22950022_LastPrice|| |
| 22950032 | UMICLIMA TOUCH | Black | 1 | 1 | 30.08 | ||22950032_LastPrice|| |
Montaggio a parete o a copertura di scatola ad incasso 503. Idoneo per il controllo della temperatura e dell'umidità relativa ambiente. Consente, inoltre, il controllo di sicirezza della temperatura di rugiada ambiente.
