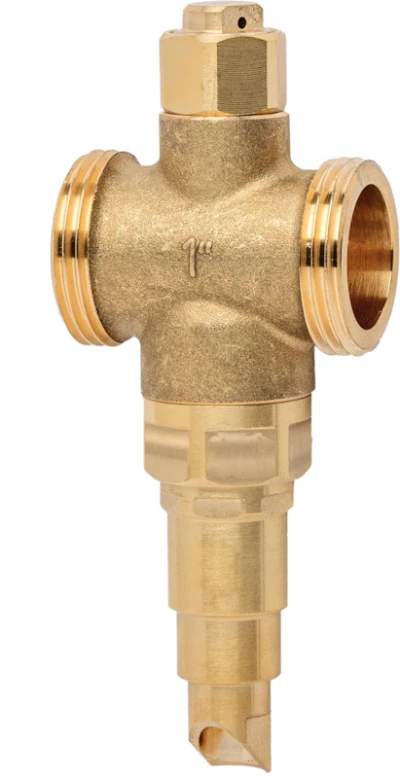

Zerofrost
Antifreeze valve for heat pumps
Series 4093
Antifreeze valve for heat pumps
Brass body. |
Brass internal components. |
EPDM PEROX seals. |
Stainless steel AISI 302 springs. |
Compatible fluid: water |
Max operating pressure 10 Bar |
Temperature range 0-80°C |
Fluid temperature (open) 3° C |
Fluid temperature (closed) 4° C |
Sensitivity ± 1° C |
Max discharge flow rate at 3 bar: 1.5 l/h |
Download
Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
4093.06.00 | G 1" | 55 | 1 | 20 | 07.04 | ||40930600_LastPrice|| |
4093.07.00 | G 1” 1/4 | 70 | 1 | 20 | 07.04 | ||40930700_LastPrice|| |
