Airterm Dirt | Series 2831.A

Airterm Dirt

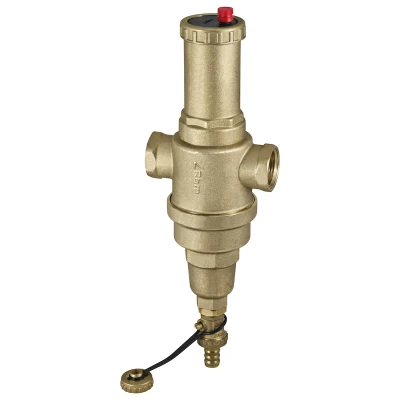

Self-cleaning dirt separator / deaerator

Series 2831.A
Self-cleaning dirt separator / deaerator. Float operated deaerator. Complete with drain ball cock with hose connection.
Brass body.
Lever floating device in PP.
Stainless steel AISI 304 3 Layers filtering cartridge.
Elastomer hydraulic seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 10 Bar
Max operating discharge pressure 10 Bar
Operating temperature 0 ÷ +110 °C

Features:

Certifications:

Self-cleaning dirt separator / deaerator

Code Measure Kv (m³/h) Pack Outer Cat.
2831.04.00 G 1/2" 7,40 1 1 20.02 ||28310400_LastPrice||
2831.05.00 G 3/4" 12,66 1 1 20.02 ||28310500_LastPrice||
2831.06.00 G 1" 20,44 1 1 20.02 ||28310600_LastPrice||
2831.07.00 G 1"1/4 28,14 1 1 20.02 ||28310700_LastPrice||
