Airterm Mag

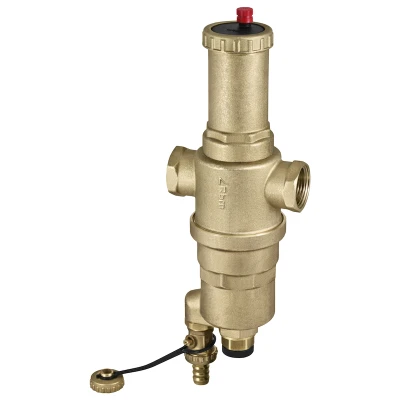

Self-cleaning magnetic dirt separator / deaerator

Series 2863
Self-cleaning dirt separator / deaerator. Float operated deaerator. Provided with drain ball valve with hose end connector.
Brass body.
Stainless steel AISI 304 2 Layers filtering cartridge.
Elastomer hydraulic seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 10 Bar
Max operating discharge pressure 10 Bar
Operating temperature 0 ÷ +110 °C
Neodymium magnet B = 11000 gauss

Features:

Certifications:

Self-cleaning magnetic dirt separator / deaerator

Code Measure Kv (m³/h) Pack Outer Cat.
2863.04.00 G 1/2" 7,40 1 6 20.03 ||28630400_LastPrice||
2863.05.00 G 3/4" 12,66 1 6 20.03 ||28630500_LastPrice||
2863.06.00 G 1" 20,44 1 6 20.03 ||28630600_LastPrice||
2863.07.00 G 1"1/4 28,14 1 6 20.03 ||28630700_LastPrice||
