Airterm

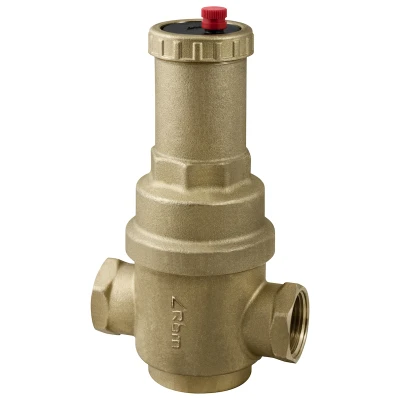

In-line deaerator
Series 2830.A
Line deaerator. Float operated.
| Brass body. |
| Float and lever in PP. |
| Stainless steel AISI 302 spring. |
| Stainless steel 304 3Layers cartridge. |
| Elastomer seals. |
| Threaded connections F UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 10 Bar |
| Max operating temperature 110 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
In-line deaerator
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 2830.04.00 | G 1/2" | Airterm | 1 | 6 | 20.02 | ||28300400_LastPrice|| |
| 2830.05.00 | G 3/4" | Airterm | 1 | 6 | 20.02 | ||28300500_LastPrice|| |
| 2830.06.00 | G 1" | Airterm | 1 | 6 | 20.02 | ||28300600_LastPrice|| |
| 2830.07.00 | G 1"1/4 | Airterm | 1 | 6 | 20.02 | ||28300700_LastPrice|| |
| 2830.08.00 | G 1"1/2 | Airterm | 1 | 6 | 20.02 | ||28300800_LastPrice|| |
| 2830.09.00 | G 2" | Airterm | 1 | 1 | 20.02 | ||28300900_LastPrice|| |
