Airterm
Flanged in-line deaerator
Series 2830.B

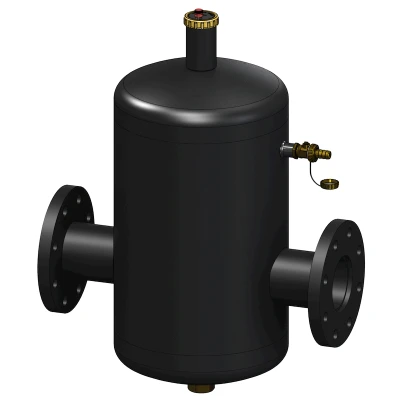

Flanged in-line deaerator. Float operation.
| Painted steel body. |
| Valve body and brass degasser. |
| Elastomer degasser seals. |
| PN16 flanged connections. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 10 Bar |
| Max operating temperature 110 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Flanged in-line deaerator
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 28300972 | DN 50 | Airterm | 1 | 1 | 20.02 | ||28300972_LastPrice|| |
| 28301072 | DN 65 | Airterm | 1 | 1 | 20.02 | ||28301072_LastPrice|| |
| 28301172 | DN 80 | Airterm | 1 | 1 | 20.02 | ||28301172_LastPrice|| |
| 28301372 | DN 100 | Airterm | 1 | 1 | 20.02 | ||28301372_LastPrice|| |
| 28301472 | DN 125 | Airterm | 1 | 1 | 20.02 | ||28301472_LastPrice|| |
| 28301572 | DN 150 | Airterm | 1 | 1 | 20.02 | ||28301572_LastPrice|| |
Flange suitable for coupling with counter-flange UNI EN 1092-1.
