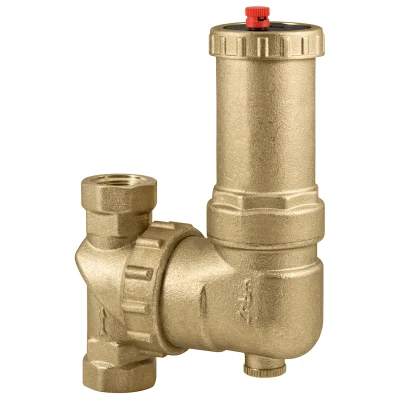

Airterm UP
Adjustable deaerator
Series 2649
Adjustable deaerator. Float operation.
| Brass body. |
| Float and lever in PP. |
| Stainless steel AISI 302 spring. |
| Stainless steel AISI 304 cartridge. |
| Elastomer seals. |
| Threaded connections F UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 10 Bar |
| Max operating temperature 115 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Adjustable deaerator
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 26490500 | G 3/4" | Airterm UP | 1 | 6 | 20.02 | ||26490500_LastPrice|| |
| 26490600 | G 1" | Airterm UP | 1 | 6 | 20.02 | ||26490600_LastPrice|| |
Can be mounted on vertical, horizontal and diagonal piping.
