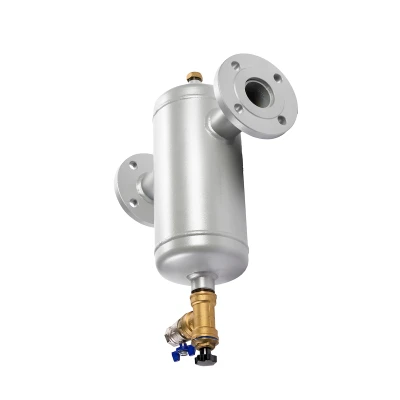

Dirterm Mag (flanged)
Filtro defangatore magnetico autopulente/disareatore flangiato
Series 3173.B
Self-cleaning magnetic sludge remover filter / flanged deaerator. With drain ball valve.
| Main body and flanges in electrostatically powder-coated steel on the outside. |
| Stainless steel filtering cartridge. |
| Elastomer seals. |
| PN16 flanged couplings. |
| Max operating pressure 10 Bar |
| Max operating pressure 110°C |
Download
Features:
Self-cleaning magnetic sludge remover filter / flanged deaerator. With drain ball valve.
| Code | Size | Box | Carton | Cat. | € |
| 31730972 | DN 50 | 1 | 1 | 20.03 | ||31730972_LastPrice|| |
| 31731072 | DN 65 | 1 | 1 | 20.03 | ||31731072_LastPrice|| |
| 31731172 | DN 80 | 1 | 1 | 20.03 | ||31731172_LastPrice|| |
| 31731372 | DN 100 | 1 | 1 | 20.03 | ||31731372_LastPrice|| |
| 31731472 | DN 125 | 1 | 1 | 20.03 | ||31731472_LastPrice|| |
| 31731572 | DN 150 | 1 | 1 | 20.03 | ||31731572_LastPrice|| |
Insulation included.
