Dirterm Mag

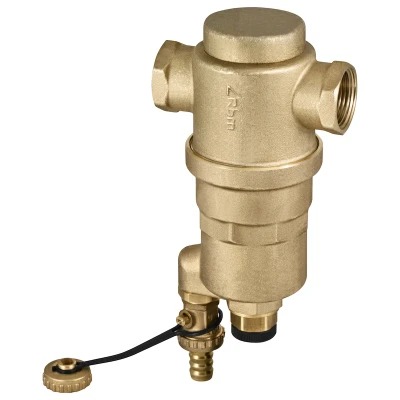

Self-cleaning magnetic dirt separator
Series 3173.A
Self-cleaning magnetic dirt separator. Complete with drain ball cock with hose connection.
| Brass body. |
| Stainless steel AISI 304 2 Layers filtering cartridge. |
| Elastomer hydraulic seals. |
| Threaded connections FF UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Operating temperature 0 ÷ +110 °C |
| Neodymium magnet B = 11000 gauss |
Download
Features:
Certifications:
Self-cleaning magnetic dirt separator
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 31730400 | G 1/2" | 7,40 | 1 | 8 | 20.03 | ||31730400_LastPrice|| |
| 31730500 | G 3/4" | 12,66 | 1 | 8 | 20.03 | ||31730500_LastPrice|| |
| 31730600 | G 1" | 20,44 | 1 | 8 | 20.03 | ||31730600_LastPrice|| |
| 31730700 | G 1"1/4 | 28,14 | 1 | 8 | 20.03 | ||31730700_LastPrice|| |
| 31730800 | G 1"1/2 | 44,45 | 1 | 8 | 20.03 | ||31730800_LastPrice|| |
| 31730900 | G 2" | 65,58 | 1 | 8 | 20.03 | ||31730900_LastPrice|| |
