Dirterm UP
Adjustable self-cleaning dirt separator
Series 3491

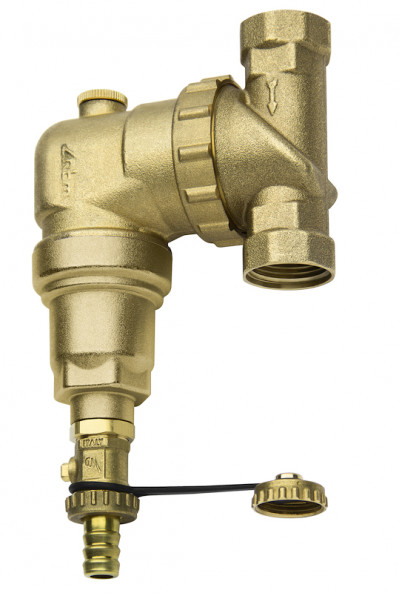

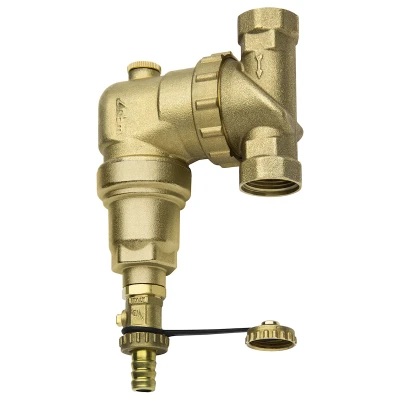

Adjustable self-cleaning dirt separator. Complete with drain ball valve with hose connection.
Brass body. |
Stainless steel AISI 304 3 Layers filtering cartridge. |
Elastomer hydraulic seals. |
Threaded connections FF UNI-EN-ISO 228. |
Max operating pressure 10 Bar |
Operating temperature 0 ÷ +110 °C |
Download
Adjustable self-cleaning dirt separator
Code | Size | Box | Carton | Cat. | € |
34910500 | G 3/4" | 1 | 1 | 20.02 | ||34910500_LastPrice|| |
34910600 | G 1" | 1 | 1 | 20.02 | ||34910600_LastPrice|| |
Can be mounted on vertical, horizontal and diagonal piping.
Possibility to mount accessory connector series 2343.A (see p.
