Mag-Net

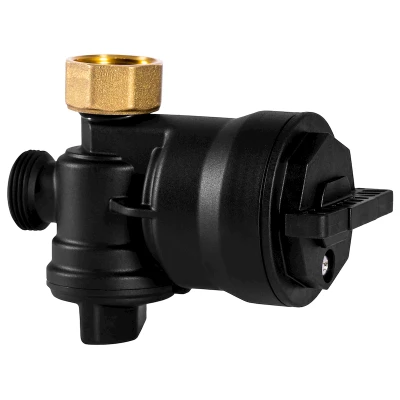

Under-boiler magnetic sludge remover filter

Series 3892
Under-boiler magnetic sludge remover filter.
Plastic polymer cartridge holder body.
Stainless steel AISI 304 filtering cartridge.
Elastomer hydraulic seals.
System return connections: M3/4" Flat seat
Boiler inlet connections: 3/4” swivel nut Flat seat
UNI-EN-ISO 228
Max operating pressure 3 bar
Operating temperature 0 ÷ +80 °C
Neodymium magnet REN 35 B = 11000/12000 gauss
Filtering grade 800 μm

Features:

Under-boiler magnetic sludge remover filter

Code Measure Kv (m³/h) Pack Outer Cat.
3892.05.50 G 3/4" 3.94 1 8 20.03 ||38920550_LastPrice||
*
