Download catalouge

Mag-nus2

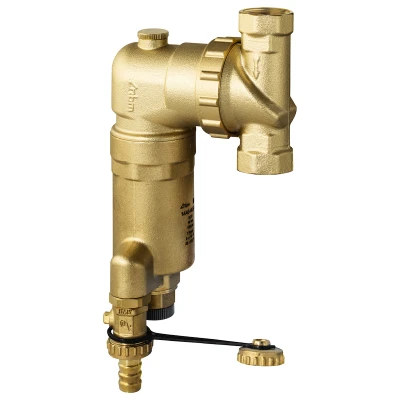

Self-cleaning magnetic sludge remover filter for hydraulic systems

Series 3548
Self-cleaning magnetic sludge remover filter for hydraulic systems. Provided with drain ball cock with hose end connector.
Brass body.
Stainless steel AISI 304 filtering cartridge.
Elastomer hydraulic seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 10 Bar
Operating temperature 0 ÷ +100 °C
Max operating temperature 130 °C
Neodymium magnet B = 11000 gauss
B(T max) / B(T amb)* < 1%
* T max = 130 °C - T amb = 21 °C

Features:

Certifications:

Self-cleaning magnetic sludge remover filter for hydraulic systems

Code Measure Kv (m³/h) Pack Outer Cat.
3548.05.00 G 3/4" 9,50 1 4 20.03 ||35480500_LastPrice||
3548.06.00 G 1" 10,30 1 4 20.03 ||35480600_LastPrice||
